42L Straight Point Base – Copper

42L Straight Point Base – Copper

$18.19

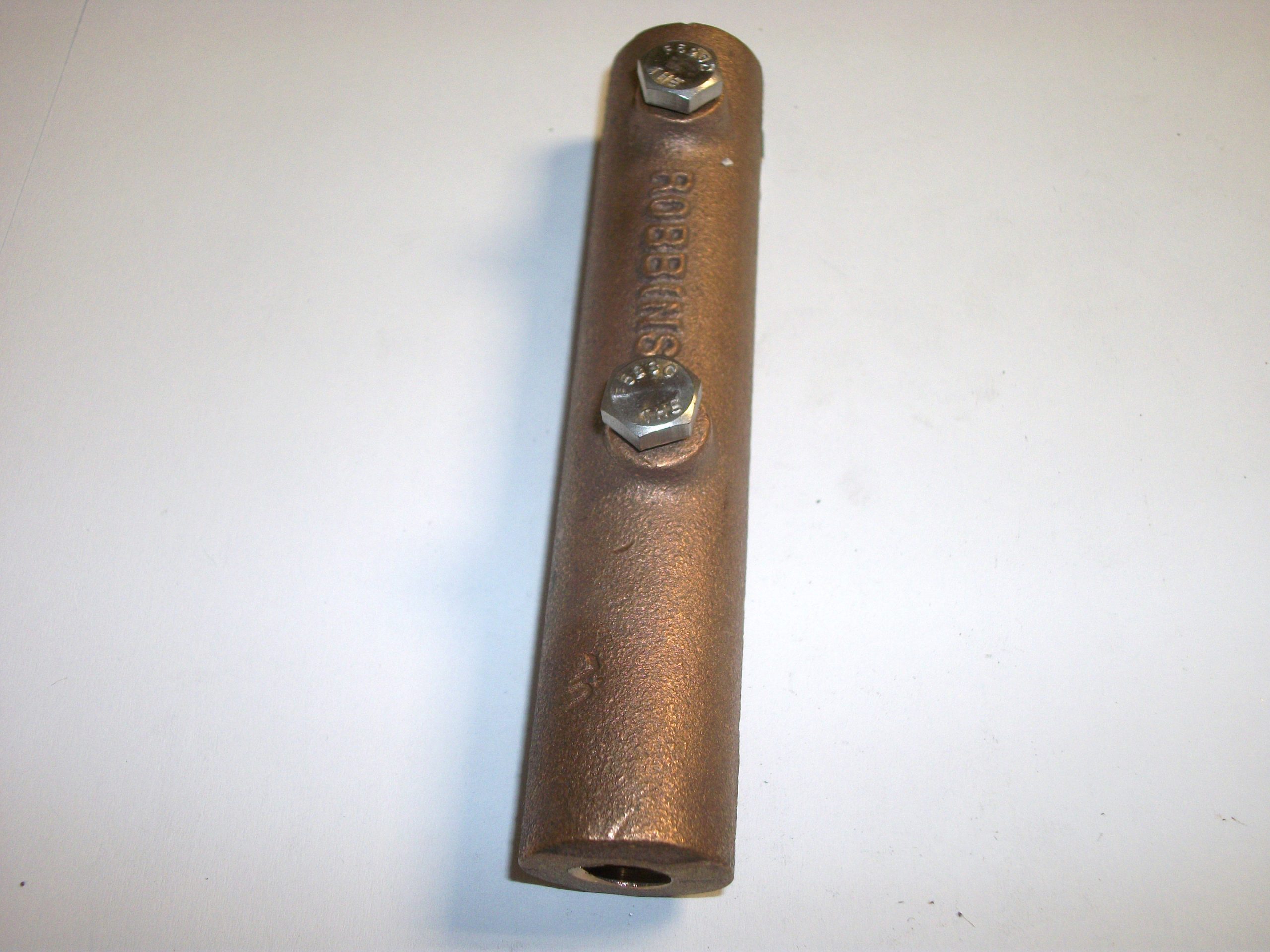

Heavy cast bronze or aluminum straight point base for use when cable extends in line with point. One end drilled and tapped to receive point – one end to receive cable.

Download PDF Specifications Sheet
SKU: 42L Categories: , ,

Description

Heavy cast bronze or aluminum straight point base for use when cable extends in line with point. One end drilled and tapped to receive point – one end to receive cable. Two 1/4” set screws for pressure on cable. Available in No. 42 small size for copper cables No. 1, No. 2 and No. 6 with points 3/8” and 1/2” diameter. Large size No. 42L and No. A42L for main sized cables with points 3/8”, 1/2” or 5/8” diameter. 42 series dimensions – 3-1/4” x 3/4”. 42L series dimensions – 5” x 1”.
Specify diameter of point — 3/8”, 1/2” or 5/8”.

Additional information

Weight 0.65 lbs
