Description

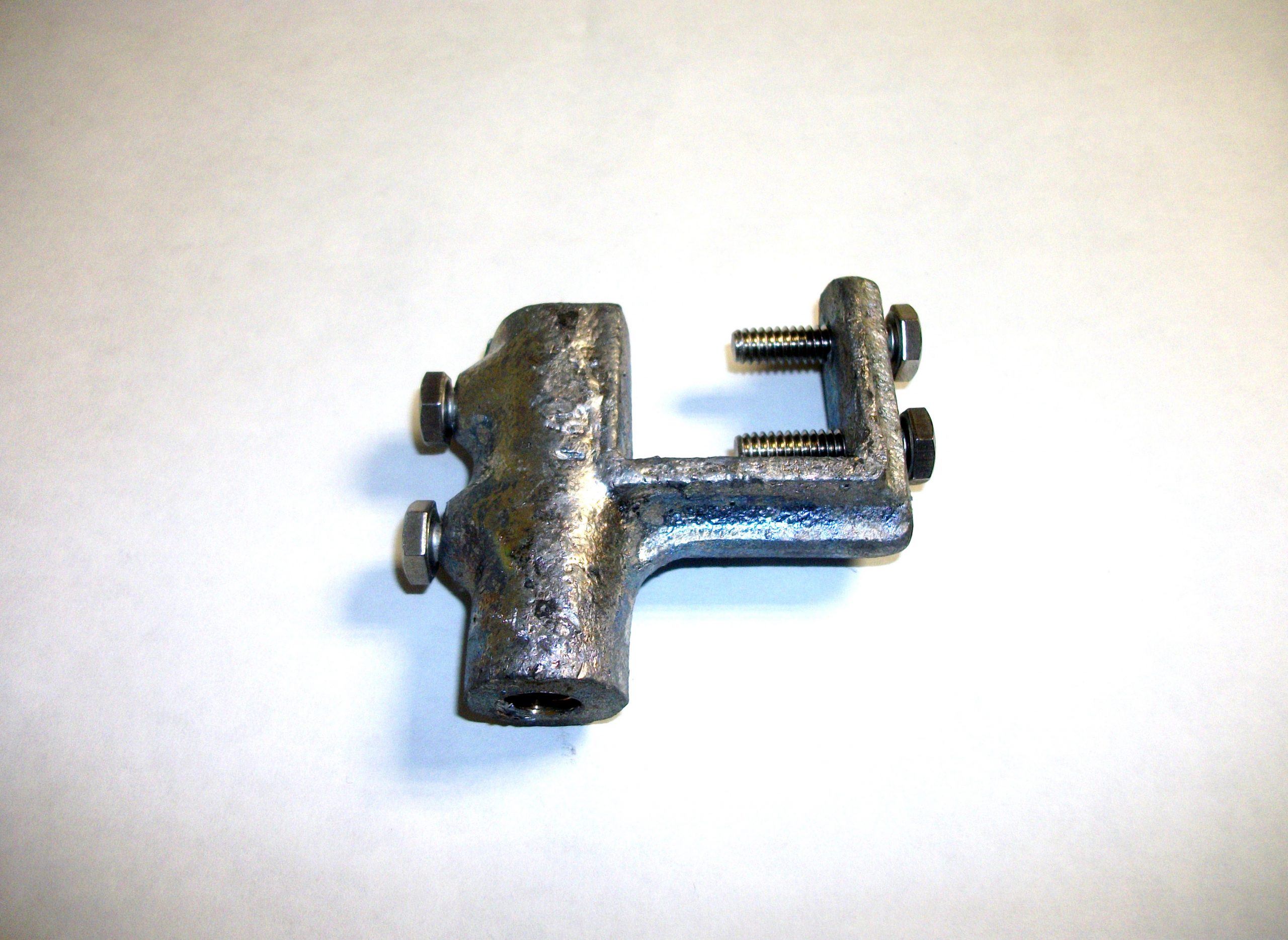

Heavy cast bronze or aluminum point base for use on rim of clay tile or glazed tile flue liner. Draws tight with two
1/4” set screws on tile thickness to 1-1/4” — cable contact 1-1/2” with two 1/4” set screws for pressure. For main sized cables through No. 605 and for points 3/8” and 1/2” in diameter. Copper base can be lead covered to prevent corrosion from flue gases. Overall dimensions – 3” x 3” x 1”. Maximum recommended torque on mounting bolts: 25 in / lbs.
Specify diameter of point — 3/8” or 1/2”.
Adapter required for 5/8” threads.
