680A Static Grounding Receptacle – Copper

680A Static Grounding Receptacle – Copper

$58.44

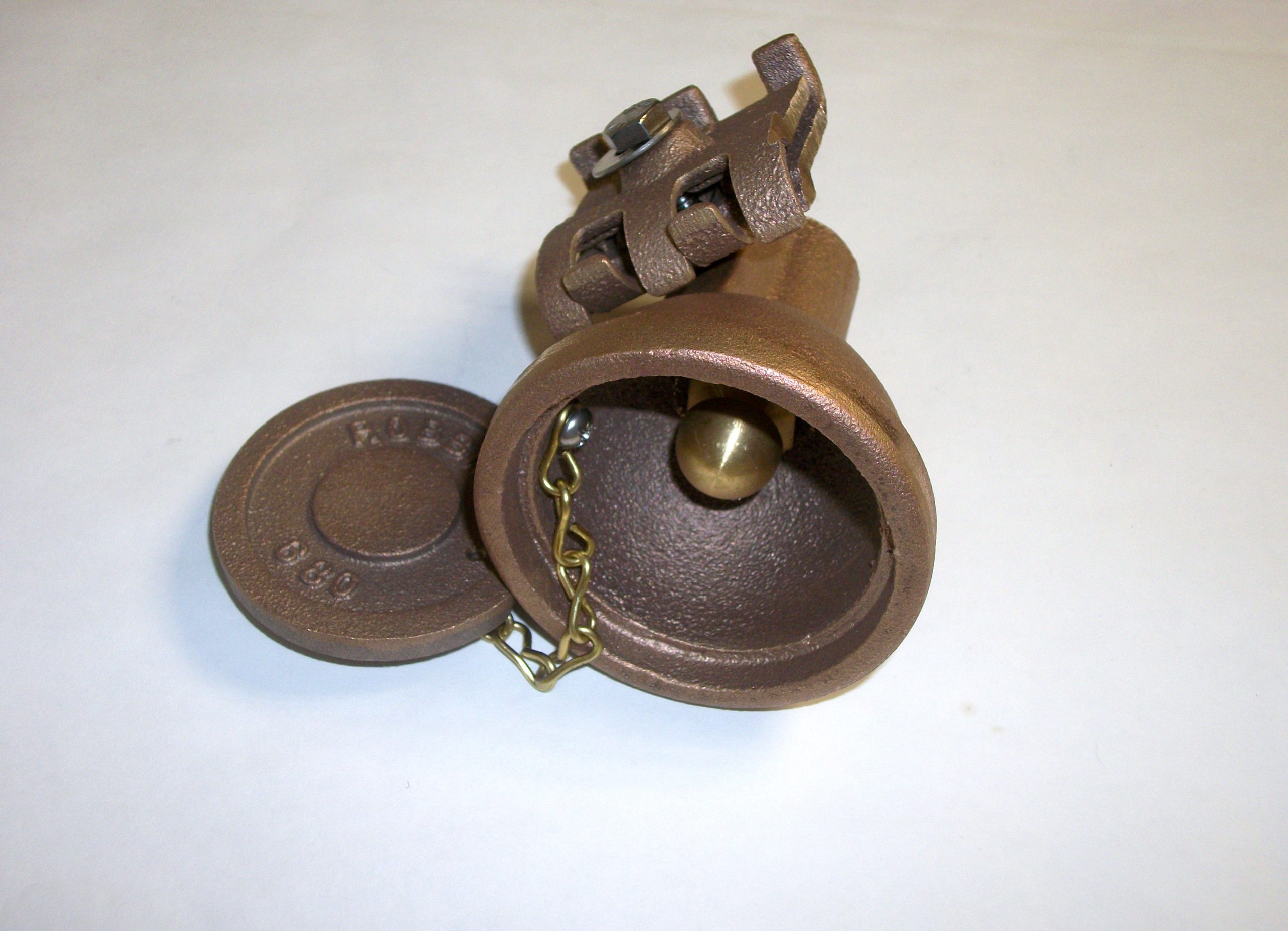

Cast bronze aircraft type static grounding receptacle. Cover attached with strong linked chain.

Download PDF Specifications Sheet
SKU: 680A Categories: , ,

Description

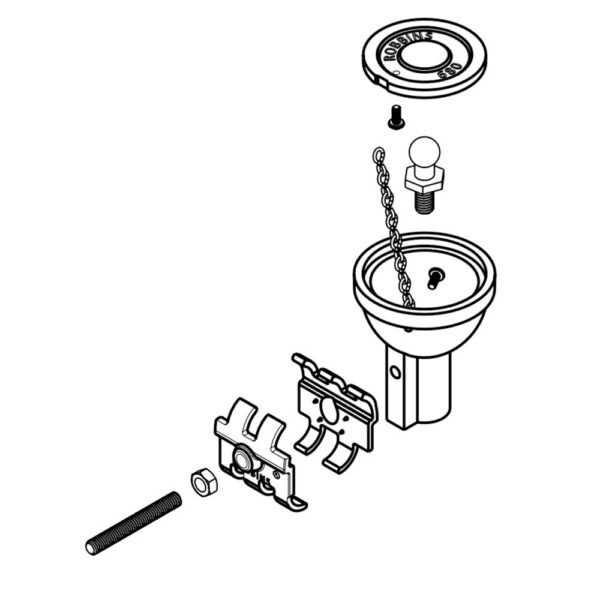

Cast bronze aircraft type static grounding receptacle. Cover attached with strong linked chain. Replaceable stud for standard 1/2” grounding connector. Base threaded to receive 3/4” sectional ground rod or extension rod: No. 68A added. Cable capacity No. 6 AWG through No. 250 MCM AWG. Overall dimensions: 2-15/16” diameter x 3-15/16”. Inside dimension: 2 -1/4” diameter.

Additional information

Weight 2 lbs
